ZVTK Compression and Threading Benchmarks#

These benchmarks evaluate zvtk performance across multiple compression levels and varying numbers of threads. A 500 MB pyvista.UnstructuredGrid was used for compression-level tests, and a 10 GB pyvista.UnstructuredGrid was used for multi-threading benchmarks.

Compression Level Comparison#

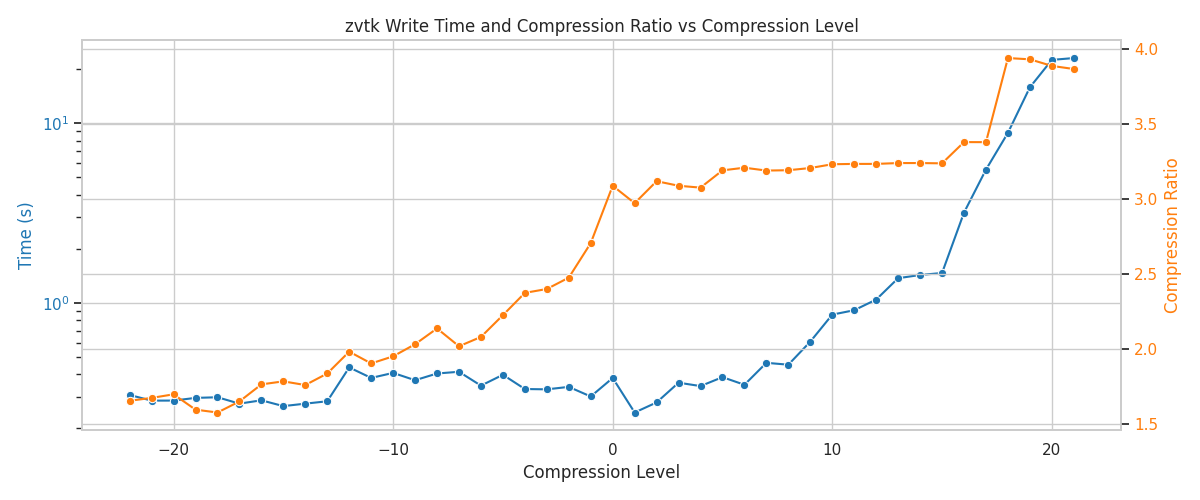

Write time (log) and compression ratio vs compression level — ZVTK write time (log) and compression ratio vs compression level#

Write times increase with higher compression levels, while compression ratios also improve. The plot shows the trade-off between speed and compression.

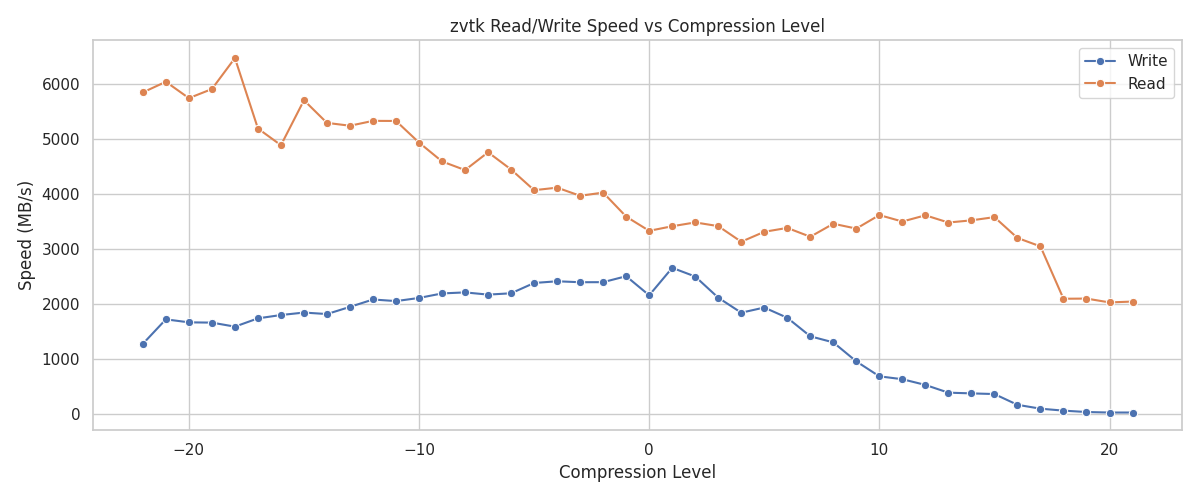

Read/Write Performance vs. Compression Levels — Read/Write Speed vs. Compression Levels#

Write performance peaks around the default compression level (3), while the read performance is highly dependent on the compression level, approaching the SSD drive speed (6 GB/s).

Note

Note the severely low write speeds using high (15+) levels of compression.

Threading Performance Comparison#

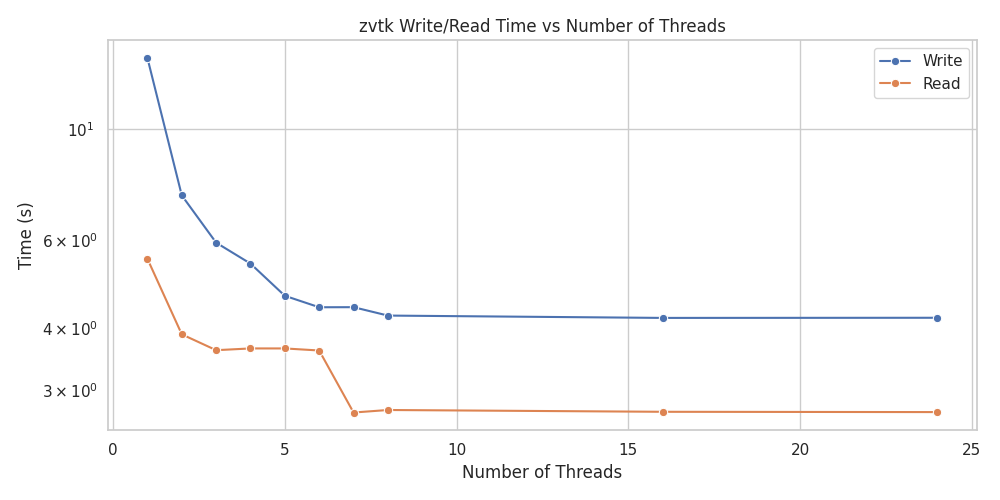

Write/read time vs number of threads (log scale) — ZVTK write/read time vs number of threads#

Increasing threads significantly reduces write/read times, with diminishing returns beyond 8 threads.

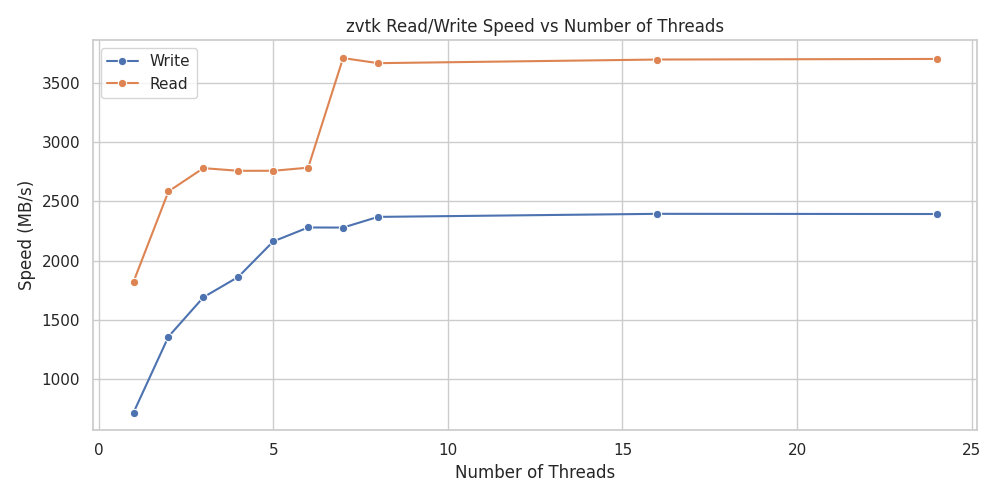

Write/read speed (MB/s) vs number of threads — ZVTK write/read speed vs number of threads#

Read and write speed scales with threads; read speeds are generally higher than write speeds for the same number of threads.

Benchmark Script#

The benchmarks were executed using the following Python script:

"""
Compare zvtk's performance across many compression levels and number of threads.

Size in memory: 6760.66 MB

"""

from __future__ import annotations

from pathlib import Path
import time

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import pyvista as pv
import seaborn as sns
from tqdm import tqdm

import zvtk

sns.set(style="whitegrid")

tmp_dir = Path("/tmp/zvtk_test")
tmp_dir.mkdir(exist_ok=True)

rng = np.random.default_rng(42)
results = []

# Generate a ~500 MB unstructured grid
n_dim = 127
imdata = pv.ImageData(dimensions=(n_dim, n_dim, n_dim))
ugrid = imdata.to_tetrahedra()

ugrid["pdata"] = rng.random(ugrid.n_points)
ugrid["cdata"] = rng.random(ugrid.n_cells)

nbytes = (
    ugrid.points.nbytes
    + ugrid.cell_connectivity.nbytes
    + ugrid.offset.nbytes
    + ugrid.celltypes.nbytes
    + ugrid["pdata"].nbytes
    + ugrid["cdata"].nbytes
)
print(f"Size in memory: {nbytes / 1024**2:.2f} MB")
print()

###############################################################################
tmp_path = Path("/tmp/ds.zvtk")
zvtk.write(ugrid, tmp_path)

reader = zvtk.Reader(tmp_path)
print(reader.show_frame_compression())


###############################################################################
# Compare compression levels
# Negative levels are fast and low compression, 3 is default, and 22 is max

# Compare compression levels (write + read perf)
write_times = []
read_times = []
file_sizes = []
levels = list(range(-22, 22))
n_times = 5
max_time = 20

for level in tqdm(levels):
    w_elapsed = []
    r_elapsed = []
    for _ in range(n_times):
        # write
        tstart = time.time()
        zvtk.write(ugrid, tmp_path, n_threads=8, level=level)
        wtime = time.time() - tstart
        w_elapsed.append(wtime)

        # read
        tstart = time.time()
        _ = zvtk.read(tmp_path, n_threads=8)
        rtime = time.time() - tstart
        r_elapsed.append(rtime)

        if wtime >= 20 and rtime >= 20:
            break

    write_times.append(np.mean(w_elapsed))
    read_times.append(np.mean(r_elapsed))
    file_sizes.append(tmp_path.stat().st_size)

# Prepare DataFrame
df = pd.DataFrame(
    {
        "level": levels,
        "write_time_s": write_times,
        "read_time_s": read_times,
        "file_size_MB": np.array(file_sizes) / 1024**2,
    }
)

# Compute compression ratio and speeds
df["compression_ratio"] = nbytes / (df["file_size_MB"] * 1024**2)
df["write_MBps"] = nbytes / (np.array(write_times) * 1024**2)
df["read_MBps"] = nbytes / (np.array(read_times) * 1024**2)

# First figure: time + compression ratio
fig, ax1 = plt.subplots(figsize=(12, 5))

ax1.set_xlabel("Compression Level")
ax1.set_ylabel("Write Time (s)", color="tab:blue")
sns.lineplot(data=df, x="level", y="write_time_s", marker="o", ax=ax1, color="tab:blue")
ax1.set_yscale("log")
ax1.tick_params(axis="y", labelcolor="tab:blue")

ax2 = ax1.twinx()
ax2.set_ylabel("Compression Ratio", color="tab:orange")
sns.lineplot(data=df, x="level", y="compression_ratio", marker="o", ax=ax2, color="tab:orange")
ax2.tick_params(axis="y", labelcolor="tab:orange")

plt.title("zvtk Write Time (log) and Compression Ratio vs Compression Level")
fig.tight_layout()
plt.show()


# Second figure: throughput (MB/s)
plt.figure(figsize=(12, 5))
sns.lineplot(data=df, x="level", y="write_MBps", marker="o", label="Write")
sns.lineplot(data=df, x="level", y="read_MBps", marker="o", label="Read")
plt.xlabel("Compression Level")
plt.ylabel("Speed (MB/s)")
plt.title("zvtk Read/Write Speed vs Compression Level")
plt.legend()
plt.tight_layout()
plt.show()


###############################################################################
# Compare performance across number of threads for a large file

# Generate a ~10 GB unstructured grid
n_dim = 342
imdata = pv.ImageData(dimensions=(n_dim, n_dim, n_dim))
ugrid = imdata.to_tetrahedra()

ugrid["pdata"] = rng.random(ugrid.n_points)
ugrid["cdata"] = rng.random(ugrid.n_cells)

nbytes = (
    ugrid.points.nbytes
    + ugrid.cell_connectivity.nbytes
    + ugrid.offset.nbytes
    + ugrid.celltypes.nbytes
    + ugrid["pdata"].nbytes
    + ugrid["cdata"].nbytes
)
print(f"Size in memory: {nbytes / 1024**2:.2f} MB")
print()


###############################################################################
# Compare performance vs. n-threads

threads_list = [*list(range(1, 9)), 16, 24]
write_times = []
read_times = []
file_sizes = []

n_times = 5
max_time = 20
compression_level = 3  # fixed level

for n_threads in tqdm(threads_list):
    w_elapsed = []
    r_elapsed = []
    for _ in range(n_times):
        # write
        tstart = time.time()
        zvtk.write(ugrid, tmp_path, n_threads=n_threads, level=compression_level)
        wtime = time.time() - tstart
        w_elapsed.append(wtime)

        # read
        tstart = time.time()
        _ = zvtk.read(tmp_path, n_threads=n_threads)
        rtime = time.time() - tstart
        r_elapsed.append(rtime)

        # allow up to max_time
        if wtime >= max_time and rtime >= max_time:
            break

    write_times.append(np.mean(w_elapsed))
    read_times.append(np.mean(r_elapsed))
    file_sizes.append(tmp_path.stat().st_size)

# Prepare DataFrame
df = pd.DataFrame(
    {
        "threads": threads_list,
        "write_time_s": write_times,
        "read_time_s": read_times,
        "file_size_MB": np.array(file_sizes) / 1024**2,
    }
)

# Plot write vs read times
plt.figure(figsize=(10, 5))
sns.lineplot(data=df, x="threads", y="write_time_s", marker="o", label="Write")
sns.lineplot(data=df, x="threads", y="read_time_s", marker="o", label="Read")
plt.xlabel("Number of Threads")
plt.ylabel("Time (s)")
plt.yscale("log")
plt.title("zvtk Write/Read Time vs Number of Threads")
plt.legend()
plt.tight_layout()
plt.show()

# Compute speeds in MB/s
df = pd.DataFrame(
    {
        "threads": threads_list,
        "write_speed_MBps": nbytes / (np.array(write_times) * 1024**2),
        "read_speed_MBps": nbytes / (np.array(read_times) * 1024**2),
    }
)

# Plot read/write speed vs threads
plt.figure(figsize=(10, 5))
sns.lineplot(data=df, x="threads", y="write_speed_MBps", marker="o", label="Write")
sns.lineplot(data=df, x="threads", y="read_speed_MBps", marker="o", label="Read")
plt.xlabel("Number of Threads")
plt.ylabel("Speed (MB/s)")
plt.title("zvtk Read/Write Speed vs Number of Threads")
plt.legend()
plt.tight_layout()
plt.show()
