PyVista Examples Benchmarks#
The following benchmarks evaluate pyvista-zstd performance against VTK’s native XML writer using datasets from pyvista.examples.
Datasets tested include:
File Size Comparison#

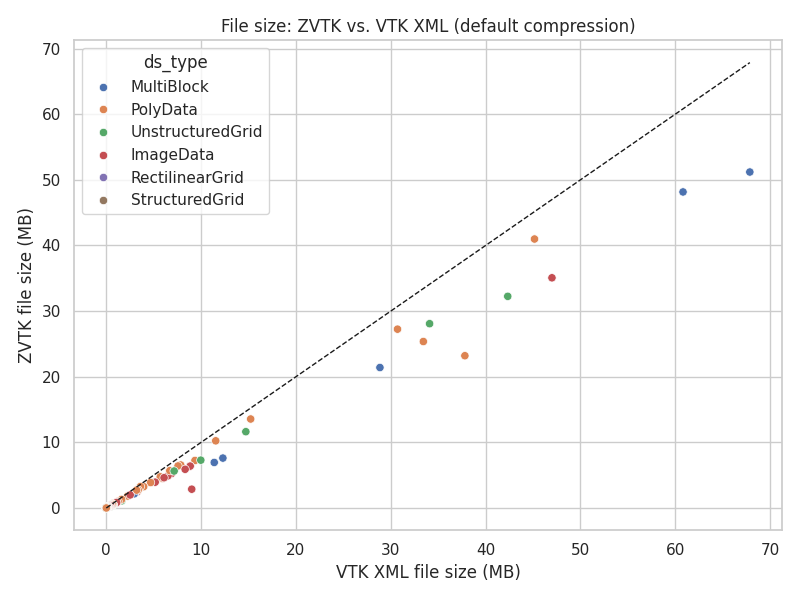

File size: pyvista-zstd vs. VTK XML (default compression)#
Most datasets show smaller file sizes when using pyvista-zstd compared to VTK XML.
Points fall below the unity line (dashed), indicating reduced disk usage with
Zstandard compression.
Write Time Comparison#

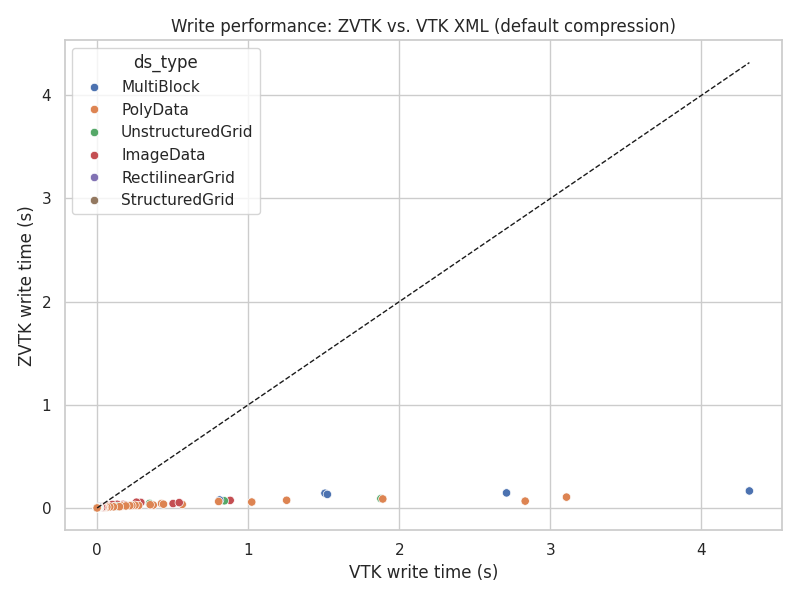

Write performance: pyvista-zstd vs. VTK XML (default compression)#
Write operations with pyvista-zstd are several times faster across all dataset
types. Larger datasets benefit more from multi-threaded compression.
Read Time Comparison#

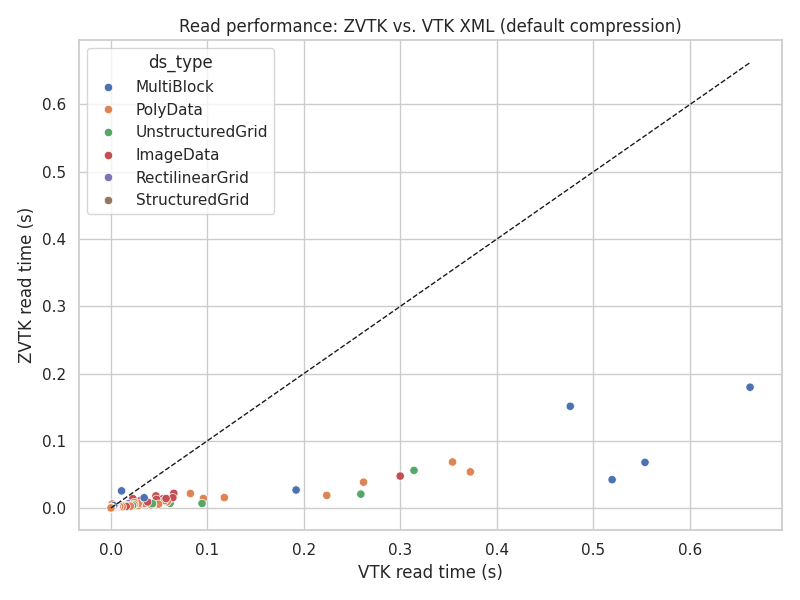

Read performance: pyvista-zstd vs. VTK XML (default compression)#
Reading pyvista-zstd files is significantly faster than VTK XML.
Note
Performance gains persist even without multi-threading.
Top 10 Largest Datasets: Speedup and Compression Ratios#

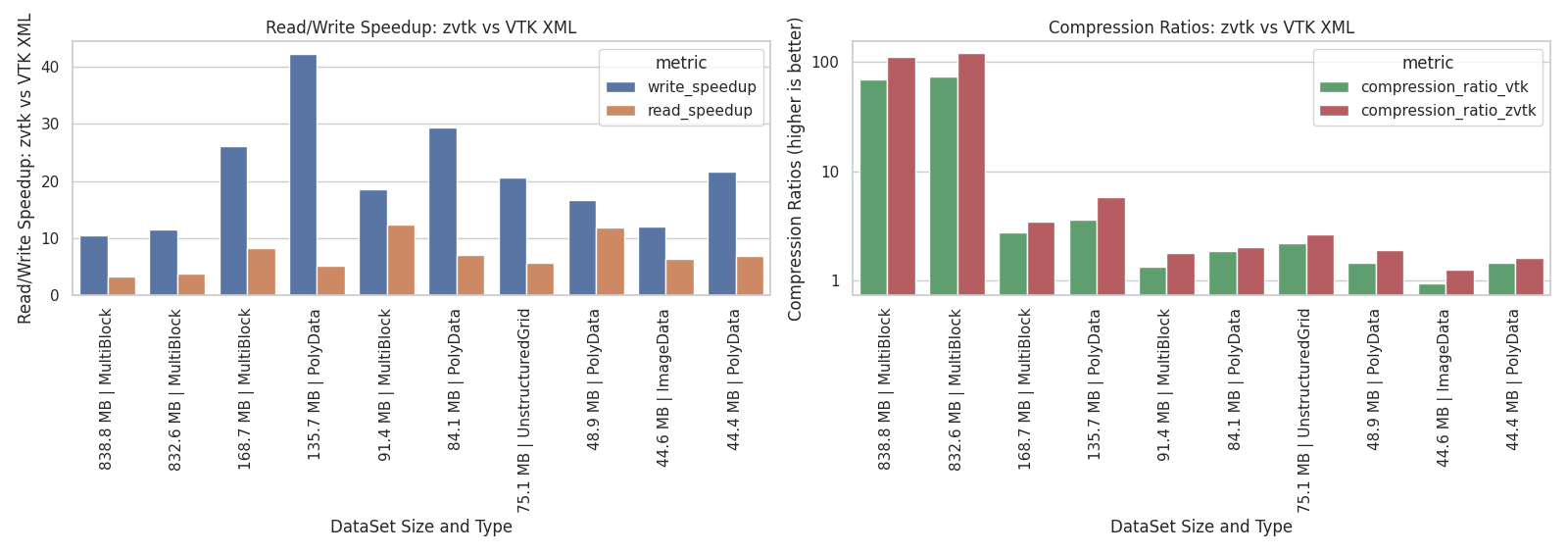

Read/Write Speedup and Compression Ratios for Top 10 pyvista.examples Datasets#
The left panel shows read/write speedups: all top datasets achieve multiple-fold
speed increases when using pyvista-zstd.
The right panel shows compression ratios (log scale): pyvista-zstd achieves higher
compression than VTK XML in all cases while retaining full dataset fidelity.
Benchmark Script#
The benchmarks were executed using the following Python script:
"""Benchmarks using PyVista examples."""
from __future__ import annotations
from pathlib import Path
import shutil
import time
import matplotlib.pyplot as plt
import pandas as pd
import pyvista as pv
from pyvista import examples
import seaborn as sns
from tqdm import tqdm
import pyvista_zstd
tmp_dir = Path("/tmp/pyvista_zstd_test")
tmp_dir.mkdir(exist_ok=True)
# supported pyvista objects
allowed = (
pv.MultiBlock,
pv.PolyData,
pv.ImageData,
pv.UnstructuredGrid,
pv.RectilinearGrid,
pv.ExplicitStructuredGrid,
pv.PointSet,
pv.StructuredGrid,
)
def get_dir_size(path: Path) -> float:
return sum(f.stat().st_size for f in Path(path).rglob("*") if f.is_file())
def timed_read_write(ds: pv.DataSet | pv.MultiBlock, n_try: int = 5) -> tuple[float, float, int]:
if isinstance(ds, pv.MultiBlock):
suffix = ".vtm"
elif isinstance(ds, pv.PolyData):
suffix = ".vtp"
elif isinstance(ds, pv.ImageData):
suffix = ".vti"
elif isinstance(ds, pv.UnstructuredGrid):
suffix = ".vtu"
elif isinstance(ds, pv.RectilinearGrid):
suffix = ".vtr"
elif isinstance(ds, pv.StructuredGrid):
suffix = ".vts"
else:
raise TypeError(f"Unsupported type {type(ds)}")
filename = Path(f"/tmp/dataset{suffix}")
mblock_path = Path("/tmp/dataset")
if mblock_path.exists():
shutil.rmtree(mblock_path)
tstart = time.time()
for _ in range(n_try):
ds.save(filename)
write_time = (time.time() - tstart) / n_try
tstart = time.time()
for _ in range(n_try):
pv.read(filename)
read_time = (time.time() - tstart) / n_try
if isinstance(ds, pv.MultiBlock):
vtk_fs = get_dir_size(mblock_path)
else:
vtk_fs = filename.stat().st_size
return write_time, read_time, vtk_fs
results = []
for name in tqdm(dir(examples)):
if not name.startswith("download_"):
continue
if name.startswith("download_file"):
continue
func = getattr(examples, name)
if not callable(func):
continue
try:
ds = func() # get dataset
except Exception as err:
print(f"skipping '{name}' due to:\n\n{err}")
if not isinstance(ds, allowed):
continue
# unfair comparison non-native XYZ type
if isinstance(ds, pv.PointSet):
continue
# read/write using VTK's native XML format
vtk_write_time, vtk_read_time, vtk_fs = timed_read_write(ds)
# read/write using pyvista-zstd using standard settings:
# - 4 threads
# - default compression
out_file = tmp_dir / f"{name}.pv"
tstart = time.time()
n_try_pyvista_zstd = 10
for _ in range(n_try_pyvista_zstd):
writer = pyvista_zstd.Writer(ds, out_file)
writer.write(n_threads=4)
pyvista_zstd_fs = out_file.stat().st_size
pyvista_zstd_write_time = (time.time() - tstart) / n_try_pyvista_zstd
tstart = time.time()
n_try_pyvista_zstd = 10
for _ in range(n_try_pyvista_zstd):
reader = pyvista_zstd.Reader(out_file)
reader.read()
pyvista_zstd_read_time = (time.time() - tstart) / n_try_pyvista_zstd
results.append(
{
"name": name,
"ds_type": type(ds).__name__,
"raw_nbytes": reader.nbytes,
"pyvista_zstd_nbytes": pyvista_zstd_fs,
"pyvista_zstd_write_time": pyvista_zstd_write_time,
"pyvista_zstd_read_time": pyvista_zstd_read_time,
"vtk_nbytes": vtk_fs,
"vtk_write_time": vtk_write_time,
"vtk_read_time": vtk_read_time,
}
)
df = pd.DataFrame(results)
df["write_speedup"] = df["vtk_write_time"] / df["pyvista_zstd_write_time"]
df["read_speedup"] = df["vtk_read_time"] / df["pyvista_zstd_read_time"]
df["compression_ratio_pyvista_zstd"] = df["pyvista_zstd_nbytes"] / df["raw_nbytes"]
df["compression_ratio_vtk"] = df["vtk_nbytes"] / df["raw_nbytes"]
summary = df[
[
"name",
"ds_type",
"raw_nbytes",
"vtk_nbytes",
"pyvista_zstd_nbytes",
"compression_ratio_pyvista_zstd",
"compression_ratio_vtk",
"vtk_write_time",
"pyvista_zstd_write_time",
"write_speedup",
"vtk_read_time",
"pyvista_zstd_read_time",
"read_speedup",
]
].sort_values("raw_nbytes", ascending=False)
###############################################################################
# 1. File size comparison
sns.set(style="whitegrid")
summary["vtk_MB"] = summary["vtk_nbytes"] / 1e6
summary["pyvista_zstd_MB"] = summary["pyvista_zstd_nbytes"] / 1e6
plt.figure(figsize=(8, 6))
sns.scatterplot(data=summary, x="vtk_MB", y="pyvista_zstd_MB", hue="ds_type")
min_val = min(summary["vtk_MB"].min(), summary["pyvista_zstd_MB"].min())
max_val = max(summary["vtk_MB"].max(), summary["pyvista_zstd_MB"].max())
plt.plot([min_val, max_val], [min_val, max_val], "k--", lw=1)
plt.xlabel("VTK XML file size (MB)")
plt.ylabel("pyvista-zstd file size (MB)")
plt.title("File size: pyvista-zstd vs. VTK XML (default compression)")
plt.tight_layout()
plt.show()
###############################################################################
# 2. Write time comparison
plt.figure(figsize=(8, 6))
sns.scatterplot(data=summary, x="vtk_write_time", y="pyvista_zstd_write_time", hue="ds_type")
plt.plot(
[summary["vtk_write_time"].min(), summary["vtk_write_time"].max()],
[summary["vtk_write_time"].min(), summary["vtk_write_time"].max()],
"k--",
lw=1,
)
plt.xlabel("VTK write time (s)")
plt.ylabel("pyvista-zstd write time (s)")
plt.title("Write performance: pyvista-zstd vs. VTK XML (default compression)")
plt.tight_layout()
plt.show()
###############################################################################
# 3. Read time comparison
plt.figure(figsize=(8, 6))
sns.scatterplot(data=summary, x="vtk_read_time", y="pyvista_zstd_read_time", hue="ds_type")
plt.plot(
[summary["vtk_read_time"].min(), summary["vtk_read_time"].max()],
[summary["vtk_read_time"].min(), summary["vtk_read_time"].max()],
"k--",
lw=1,
)
plt.xlabel("VTK read time (s)")
plt.ylabel("pyvista-zstd read time (s)")
plt.title("Read performance: pyvista-zstd vs. VTK XML (default compression)")
plt.tight_layout()
plt.show()
###############################################################################
# 4. Ratios summary (bar plot)
import matplotlib.pyplot as plt
import matplotlib.ticker as mticker
import seaborn as sns
top10 = summary.nlargest(10, "raw_nbytes").copy()
top10["compression_ratio_vtk"] = 1 / top10["compression_ratio_vtk"]
top10["compression_ratio_pyvista_zstd"] = 1 / top10["compression_ratio_pyvista_zstd"]
# Build DataSet Size and Types with size (MB) and dataset type
top10["DataSet Size and Type"] = (top10["raw_nbytes"] / 1e6).round(1).astype(str) + " MB | " + top10["ds_type"]
palette = sns.color_palette()
fig, axes = plt.subplots(1, 2, figsize=(16, 6))
plt.suptitle("Top 10 pyvista.examples Datasets by Size")
sns.barplot(
data=top10.melt(
id_vars=["DataSet Size and Type"],
value_vars=["write_speedup", "read_speedup"],
var_name="metric",
value_name="value",
),
x="DataSet Size and Type",
y="value",
hue="metric",
palette=palette[:2],
ax=axes[0],
)
axes[0].set_title("Read/Write Speedup: pyvista-zstd vs VTK XML")
axes[0].tick_params(axis="x", rotation=90)
axes[0].set_ylabel("Read/Write Speedup: pyvista-zstd vs VTK XML")
sns.barplot(
data=top10.melt(
id_vars=["DataSet Size and Type"],
value_vars=["compression_ratio_vtk", "compression_ratio_pyvista_zstd"],
var_name="metric",
value_name="value",
),
x="DataSet Size and Type",
y="value",
hue="metric",
palette=palette[2:4],
ax=axes[1],
)
axes[1].set_yscale("log")
axes[1].yaxis.set_major_formatter(mticker.ScalarFormatter()) # non-log label
axes[1].set_title("Compression Ratios: pyvista-zstd vs VTK XML")
axes[1].tick_params(axis="x", rotation=90)
axes[1].set_ylabel("Compression Ratios (higher is better)")
plt.tight_layout()
plt.show()
